SNACKS FOOD COMPLETE LINE

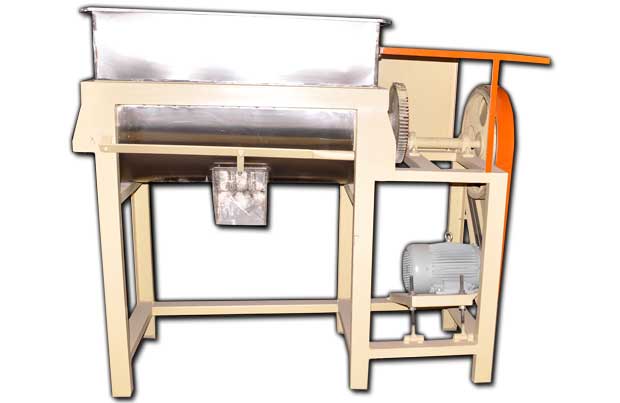

MIXTURE MACHINE :
It is fabricated on Mild steel channel frame and “U" shape Drum size: L-42", W-24" & H-24” in Stainless steel, the main control shaft With arms/ ribbon type ribs driven by 7.5HP motor and gear.

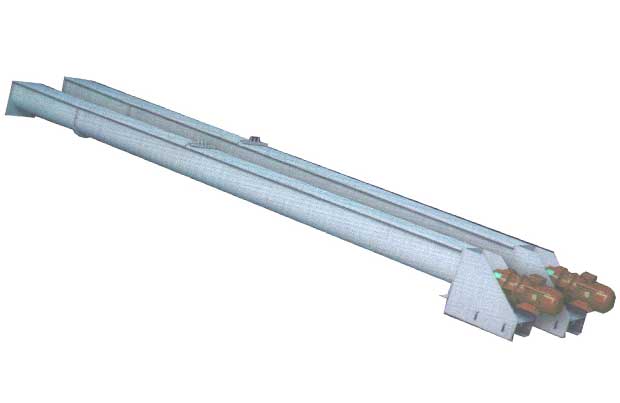

SCREW CONVEYOR :
From mixture to extruder

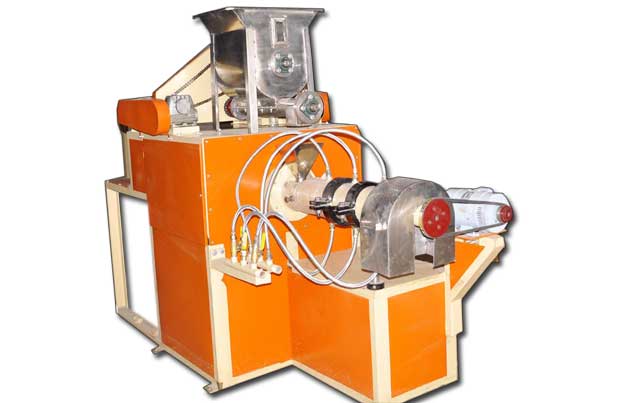

FOOD EXTRUDER :
It is continuous cooking food extruder specially designed main Bearing hosing, screws, barrels & die Plate etc. of machine with production Capacity 200Kg/Hr. without main motor Automatic system like feeding with 1Motor Of 1HP DC attached with gear box. For auto Cutting system with variable speed knifes Drives by 1HP DC Motor. Hopper Drive with 1HP motor with gearbox.

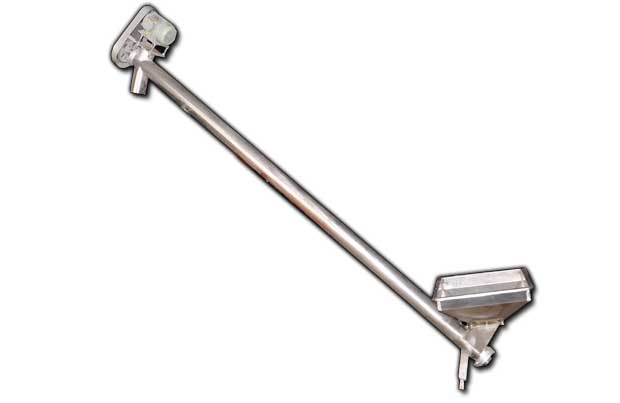

SCREW CONVEYOR :

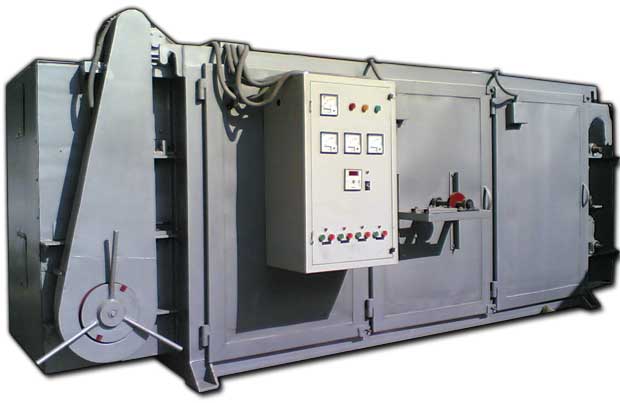

From extruder to dryerCONVEYORISED ELECTRIC DRIER THREE STAGE :
It is fabricated on heavy duty miled Steel channel’s and sheets frame of Double walled, gap between walls filled By glass/ mineral wool.32" wide wire mashed conveyor belt driven on roles with the help of chains and gears in 3 stages forcontineious drying system to dry soyabari with complete auto heat controlled by thermostatic & auto cut on/off switches for heaters. Digital temperature indicator. Main controls drive by 2 HP motor and Gearbox driven on chain & fly wheels.
HEAT GENERATION BY ELECTRICALLY :
Fitted strip or rode Heaters connected.

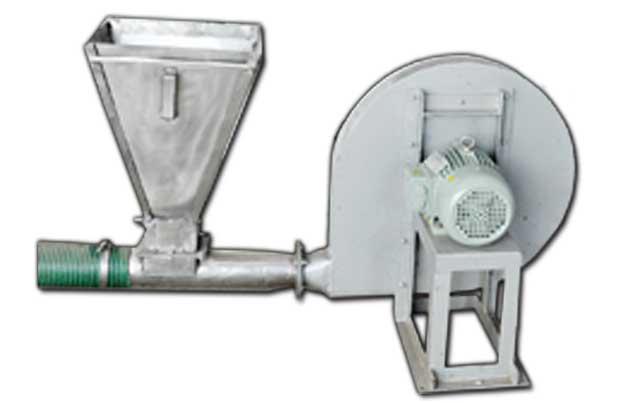

BLOWER :
With 3 hp motor and hopper ventury.FLOW DIAGRAM OF SOYA NUGGET :
